High Rate Li Ion Polymer Battery Pack for drone 7242126 3200mah 3.7V

High Rate Li Ion Polymer Battery Pack for drone 7242126 3200mah 3.7V

  • High Rate Li Ion Polymer Battery Pack for drone 7242126 3200mah 3.7V
  • High Rate Li Ion Polymer Battery Pack for drone 7242126 3200mah 3.7V
  • High Rate Li Ion Polymer Battery Pack for drone 7242126 3200mah 3.7V
High Rate Li Ion Polymer Battery Pack for drone 7242126 3200mah 3.7V
Productdetails:
Plaats van herkomst: Gemaakt in China
Merknaam: Maxpower/OEM
Certificering: CB, CE, KC, ROHS,UN38.3,UL
Modelnummer: 7242126 3200MAH
Betalen & Verzenden Algemene voorwaarden:
Min. bestelaantal: 1000 pccs
Prijs: negociate
Verpakking Details: 8pcs/blister palet, 15bllister pallet/ctn
Levertijd: 10-30days overeenstemmend voorraadsituatie
Betalingscondities: L/C, T/T, Western Union
Levering vermogen: 200000 pcs/dag
Contact
Gedetailleerde productomschrijving
Materiaal: lithiumpolymeer, zuiver kobalt Maat: 7.2*42*126 mm
Spanning: 3.7V Netto gewicht: 145 g
Capaciteit: 6000 mAh Weerstand: ≤1.5mΩ
Tarief: 60c Maximale snelheid: 120C
Sollicitatie: UAV, onbemande drone

45C High Rate Li Ion Polymer Battery Pack 7242126 3200mah 3.7V UAV drone



KC CB UL certification



1.The battery draw and size info.

High Rate Li Ion Polymer Battery Pack for drone 7242126 3200mah 3.7V 0

High Rate Li Ion Polymer Battery Pack for drone 7242126 3200mah 3.7V 1



2. Cell specification and safty performance.



No Item Specification Remark
1 Nominal Capacity 3200 mAh 0.2 C discharge
2 Minimum. Capacity 3060mAh 0.2 C discharge
3 Nominal Voltage 3.7 V
4 Charge Voltage 4.2 ± 0.02 V
5 Charge Current Standard charge : 0.2C ( 640 mA)
6 Rapid charge : 1.0 C ( 3200 mA)
7 Charging Time Standard charge : 7.5 hours (Ref.)
8 Rapid charge : 1.5 hours (Ref.)
9  Standard dicharge current 640mA
10 Cont.. Discharge Current 120000mA
11 Burst. Discharge Current 45.0 C ( 144A ) ≤ 3 S
12 Cutoff Voltage 3.0 V
13 Resistance ≤ 1.5 mΩ 1kHz AC Method
14 Weight (Approx.) 145 g
15 Dimensions(T.W.H.)Thickness(厚度): 7.1 max mm
16 Width: 43.0 max mm
17 Length: 128 max mm
18 Operating Teerature Charge : 0 ~ 45℃
19 Discharge teerature : 0 ~ 45℃
20 Storage Teerature Short period less than 1month 0℃~35℃
Long period more than 1month 10℃~25℃

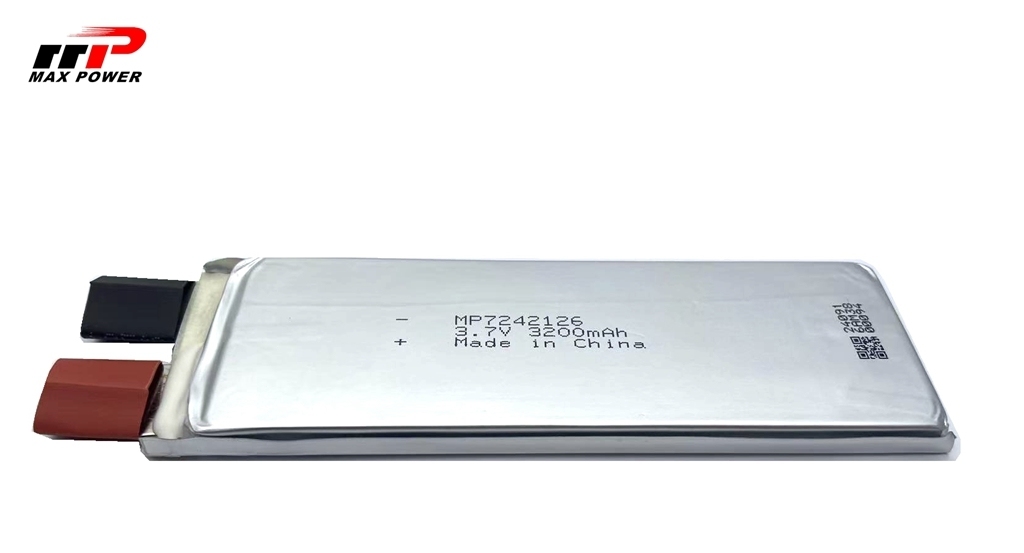

3. PIC of battery.



High Rate Li Ion Polymer Battery Pack for drone 7242126 3200mah 3.7V 2



High Rate Li Ion Polymer Battery Pack for drone 7242126 3200mah 3.7V 3







The application of the polymer battery:Unmanned drone, RC cars, RC boat,RC tools,Robot..







High Rate Li Ion Polymer Battery Pack for drone 7242126 3200mah 3.7V 4

Waranty:



We give 1 year warranty. If the battery has problem coz of our quality issue, We will give replacement.





Q&A:







1. Q:How to start the cooperate?



    A:  Lets start with our sale orders. In 3-5days will be ready the sales, then you test.We make the standard according



    the data sheet which we give.Once you confirm the quality, we can talk for further.



 2. Q: How long to make the cargos?



     A: Need 30day around if we dont have the stock of that model. Coz need strict test and high teerature,high voltage life ageing



    as well in every single pc,



 3. Q: What will be the packing?



     A:  We are using individual box for each battery cell and pallet packing for shipping.





For more please contact me freely, wish my 14 years in battery area experience can help you in your project.
